How to Fit and setup Turntable SL1500CS

FAQ: How Do I Fit and Set Up the Turntable?

1. What to do before fitting the turntable.
   Remove the magnet cover from the turntable. There is a magnet and its cover on the back side of the turntable. Remove the magnet cover before fitting to the main unit.
2. Are there any precautions when handling the magnet?
   Yes.
   • Keep any magnetic-sensitive object such as a magnetic card and watch away from the magnet.
   • Prevent the turntable from hitting the main unit or falling off.
   • Prevent dust or iron powder from adhering to the magnet on the back side.
   • Do not touch the fixing screws (three locations) of the turntable.
3. How do I fit the turntable onto the main unit?
   Slowly set the turntable on the center spindle.
   • Be careful when handling the turntable, as it is heavy.
   • Keep your fingers from being caught.
   • Wipe off fingerprints or dirt with a soft cloth.
4. How do I fit the turntable mat?
   Lay the turntable mat on the turntable.
5. How to attach the head shell.
   Fit the head shell with the cartridge into the tone arm. Keep the head shell horizontal and tighten the locking nut.
   • Be careful not to touch the stylus tip.
6. How to attach the balance weight.
   Attach the balance weight to the rear of the tone arm.
   .

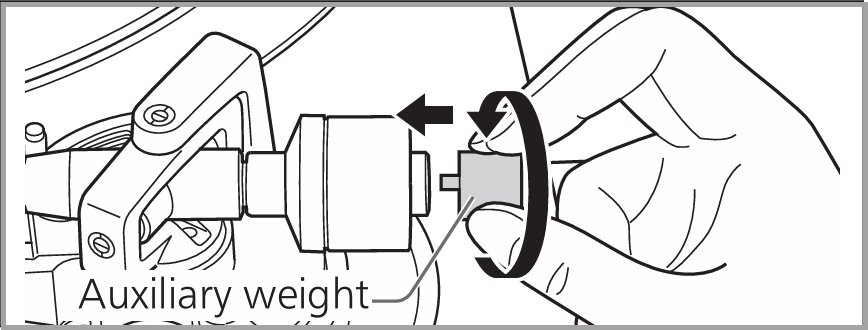

   • Attach the included auxiliary weight to the rear of the tone arm according to the weight of your cartridge.
   • For adjustable cartridge weight ranges, see "Applicable cartridge weight range".
7. Information about balance weight.

   • The inside of the balance weight is greased.
8. How to remove the turntable.
   Set your fingers in the two holes on the turntable, hold the center spindle down and remove the turntable upward.
