Starting March 2024 the Federal law required Microwave Ovens to be equipped with a door lock function. This is to prevent burns—to children or anyone unfamiliar with its use when pulling hot plates out after cooking.


Most Panasonic microwaves are locked using the following method:

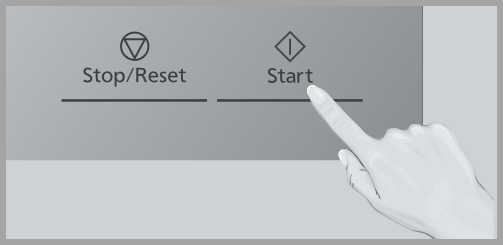

  1. To Lock - Press the [Start] button three times. Time of day will disappear and “LOCK” or a lock symbol Lock Symbol appears on the screen.

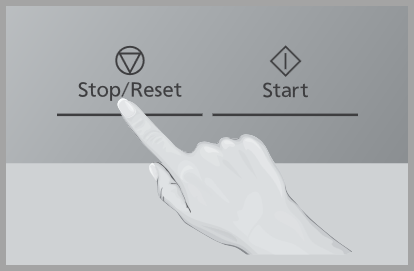

  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

For model specific instructions select a model from the list below. If a model is not listed refer to the operating instructions.


To confirm your model location on the Microwave Oven refer to How to find the model number or serial number of a Panasonic product


Model NN-CD65NS, Model NN-CD65NS AWH


Activating safety lock (child lock)

  1. Press [Frozen Pizza]
  2. Then press [Timer/Clock (Door Open) ].
  3. Last press [Popcorn].
    steps to child lock

To deactivate the safety door lock, repeat the above steps.

How to Unlock door after Cooking

  1. With the door closed, press: [Timer/Clock (Door Open)].
  2. Then press the door release button.
    steps to unlock after cooking

NOTE:
The locked door will disengage when unit is unplugged.


Model NN-CD65NS manufactured before March 2024


  1. When the colon or time of day appears in the display, press Stop/Reset three times; “key symbol ” will appear in the display.
  2. Press Stop/Reset three times; the display will return to the colon or time of the day and Child Safety Lock will be cancelled.

NOTES:


  1. This feature prevents the electronic operation of the oven until cancelled. It does not lock the door.
  2. To set or cancel Child Safety Lock, Stop/Reset button must be pressed 3 times within 10 seconds.
  3. You can set Child Safety Lock feature when the display shows a colon or time of day.

Model NN-CD66NS, NN-CD66NS AWH




Model NN-CD87KS ATH Manufactured after March 2024



Activating safety lock (child lock)

  1. Press [Airfry/Broil/Combo]
  2. Then press [Convection Bake]
  3. Last press [Timer/Clock]
    null

To deactivate the safety door lock, repeat the above steps.

How to Unlock door after Cooking

  1. With the door closed, press [Timer/Clock (Door Open)].
  2. Then press the door release button.
    NNCD87KSATH steps to unlock

NOTE:
The locked door will disengage when unit is unplugged.


Model NN-CD87KS


  1. To Lock - Press the [Stop/Reset] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. A colon or the time of day will reappear on the screen.

Model NN-CD989


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “LOCK” will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Models NN-CF876


Models NN-CS896S, NN-CS89LB


  1. To Lock - Press the [Start] Start button button three times. Time of day will disappear and a lock Lock Symbol symbol will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press the [Stop/Reset] stop button three times. Time of day will reappear on the screen.

Model NN-DS58


  1. To Lock - Press the [Start] Start button button three times. Time of day will disappear and a lock Lock Symbol symbol will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press the [Stop/Reset] stop button three times. Time of day will reappear on the screen.

Model NN-DS59


  1. To Lock - When "0" appears in the display, Press [Stop/Cancel] stop Cancel button button three times. Lock Symbol will appear on the screen.
  2. To Unlock - Press [Stop/Cancel] stop Cancel button button three times. The display will return to the colon (:) or time of day and Child Safety lock will be cancelled.

Note:


  1. This feature prevents the electronic operation of the oven until cancelled. It does not lock the door.
  2. To set or cancel Child Safety Lock, Stop/Cancel button must be pressed 3 times within 10 seconds.
  3. You can set Child SafetyLock feature when the display shows a colon or time of day.

Model NN-GD693S


Model NN-GN68


Model NN-GT69


Model NN-H765, NN-H965


To Lock

  1. Press the "Function" button.
  2. Press number [5] keypad.
  3. Press number [1] keypad, Child Lock has been set.

To Unlock

  1. Press the "Function" button.
  2. Press number [5] keypad.
  3. Press number [2] keypad, Child Lock has been set.

Model NN-P295


Model NN-S255


Model NN-SA247


Model NN-SA631, NN-SA651


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “Child” will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SB428, NN-SB438, NN-SB448, NN-SB458



Model NN-SB438S AWH Manufactured after March 2024


This video demonstrates model NN-SB65NS but operations may apply to other models

How to deactivate safety lock

  1. Press [Auto Defrost].
  2. Then Press [Timer].
  3. Last Press [Popcorn].

To re-activate the safety door lock, repeat the above steps.

How to open/unlock door after cooking

  1. With the door closed, press the [Door Open] button.
  2. Press Door release button.

NOTE:
The locked door will disengage when unit is unplugged.
*The "Door Open" button will vary by model.

Model NN-SB636, NN-SB646, NN-SB656, NN-SB658S


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SB65NS AZH Manufactured after March 2024



How to deactivate safety lock

  1. Press [Auto Defrost].
  2. Then Press [Cooking Timer].
  3. Last Press [Popcorn].

To re-activate the safety door lock, repeat the above steps.


How to open/unlock door after cooking

  1. With the door closed, press the [Door Open] button.
  2. Press Door release button.

NOTE:
The locked door will disengage when unit is unplugged.
*The "Door Open" button will vary by model.


Model NN-SB65NS


Model NN-SC64MW, NN-SC668S, NN-CS678S, NN-SC688S, NN-SC669S


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SC67NS AWH Manufactured after March 2024


How to deactivate safety lock

  1. Press [Turbo Defrost].
  2. Then [Timer/Clock].
  3. Last press [Popcorn].

To re-activate the safety door lock, repeat the above steps.

*The locked door will disengage when unit is unplugged.


How to open/unlock door after cooking

  1. With the door closed, press the [Door Open] button.
  2. Press door release button.null

NOTE:
The locked door will disengage when unit is unplugged.
*The "Door Open" button will vary by model.


Model NN-SC67NS


Model NN-SC73LS AWH Manufactured after March 2024


This video demonstrates model NN-SB65NS but operations may apply to other models


How to deactivate safety lock

  1. Press [Turbo Defrost].
  2. Then [Timer].
  3. Last press [Popcorn].

To re-activate the safety door lock, repeat the above steps.

*The locked door will disengage when unit is unplugged.


How to open/unlock door after cooking

  1. With the door closed, press the [Door Open] button.
  2. Press door release button.null

NOTE:
The locked door will disengage when unit is unplugged.
*The "Door Open" button will vary by model.


Model NN-SC73LS


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SD372


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “Child” will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SD654


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SD65LS, NN-SD66LS


  1. To Lock - Press the [Dial] button three times. A mark will appear on the screen above the “Lock” Lock Symbol indicator.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SD664W


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SD67LS AWH Manufactured after March 2024



This video demonstrates model NN-SB65NS but operations may apply to other models



Model NN-SD67LS, NN-SD67NS


Model NN-SD671


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SD68LS



Model NN-SD69LS AWH Manufactured after March 2024



This video demonstrates model NN-SB65NS but operations may apply to other models


Model NN-SD69LS


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “LOCK” will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SD775


Model NN-SD78LS ATH Manufactured after March 2024


This video demonstrates model NN-SB65NS but operations may apply to other models


How to Unlock door after Cooking

  1. With the door closed, press [Door Open].
  2. Then press the door release button.
    null

NOTE:
The locked door will disengage when unit is unplugged.


Model NN-SD78LS


  1. To Lock - Press the [Stop/Reset] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. A colon or the time of day will reappear on the screen.

Model NN-SD945S


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “LOCK” will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SD962


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “Child” will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day or colon will reappear on the screen.
    • You can set Child Lock feature when the display shows a colon or time of day.

Model NN-SD975S ATH Manufactured after March 2024


How to deactivate safety lock

  1. Press [Inv.Turbo Defrost].
  2. Then press [Timer/Clock (Door Open) ].
  3. Last press [Popcorn].

To re-activate the safety door lock, repeat the above steps.


How to Unlock door after Cooking

  1. With the door closed, press [Timer/Clock (Door Open)].
  2. Then press the door release button.

    null

NOTE:
The locked door will disengage when unit is unplugged.


Model NN-SD965S, NN-SD973S, NN-SD975S


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “LOCK” will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SD972


Models NN-SD980S, NN-SD986S, NN-SD987, NN-SD997


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “LOCK” will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SE284


  1. To Lock - Press the [Start] lock symbol button three times. Time of day will disappear and a lock "LOCK" will appear on the screen.
  2. To Unlock - Press the [Stop/Reset] stop button three times. The colon or time of day will reappear on the screen.

Model NN-SE785S ATH Manufactured after March 2024



How to deactivate safety lock


  1. Carefully pull forward the right corner of the microwave oven just past the countertop
  2. Press and hold side button while simultaneously, Insert a pen tip into hole until you hear a “click”.
    null

To re-activate the safety door lock, repeat the above steps.
IMPORTANT: Be sure to deactivate the safety lock before installing a trim kit.


How to open and unlock door after cooking


  1. With the door closed press and hold the side button while simultaneously, push the door release button.
    null

Model NN-SE785S, NN-SE795S

  1. To Lock - Press the [Start] lock symbol button three times. Time of day will disappear and a lock "LOCK" will appear on the screen.
  2. To Unlock - Press the [Stop/Reset] stop button three times. The colon or time of day will reappear on the screen.

Model NN-SE796


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “LOCK” will appear on the screen. Actual time will not be lost.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SE985S ATH Manufactured after March 2024



This video demonstrates model NN-SE785 but operations may apply to other models


Model NN-SE985, NN-SE995S

  1. To Lock - Press the [Start] button three times.
    Time of day will disappear and a lock "LOCK" will appear on the screen lock symbol.
  2. To Unlock - Press the [Stop/Reset] stop button three times. The colon or time of day will reappear on the screen.

Model NN-SG138, NN-SG158


  1. To Lock - Press the [Start] button three times. Current time will appear in the display with a lock symbol.
  2. To Unlock - Press [Stop/Reset] button three times. the display will return to the time of the day and Child Lock will be cancelled.

Model NN-SG428


Model NN-SG448SC Manufactured after March 2024


Model NN-SG448S Manufactured before March 2024


  1. When the time of day appears in the display, press Start three times; current time will appear in the display. If the clock not set, "_" will display.
  2. press Stop/Reset three times; the display will return to the time of the day and Child Lock will be cancelled.

Notes

  • This feature prevents the electronic operation of the oven until cancelled. It does not lock the door.
  • To set or cancel child safety lock, Start or Stop/Reset pad must be pressed 3 times within 10 seconds.
  • You can set Child Lock feature when the display shows a colon or time of day.

Model NN-SG458


Model NN-SG616B, NN-SG626


Model NN-SG636W/S, NN-SG656W/S, NN-SG676B/W


Model NN-SG65NB


Model NN-SN67KS AZH Manufactured after March 2024


This video demonstrates model NN-SB65NS but operations may apply to other models


How to deactivate safety lock


  1. Press [Turbo Defrost].
  2. Then press [Timer].
  3. Last press [Popcorn].

To re-activate the safety door lock, repeat the above steps.

How to open/unlock door after Cooking

  1. With the door closed, press the [Door Open] button
  2. Then press the door release button.
    0 open door button

NOTE:
The locked door will disengage when unit is unplugged.


Model NN-SN65KW/KB, NN-SN66KB, NN-SN67KS


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. A colon or the time of day will reappear on the screen.

Model NN-SN651, NN-SN661, NN-SN671


Model NN-SN67HS


Model NN-SN686S


  1. To Lock - Press the [Start] button three times. Time of day will disappear and “Child” will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SN68KS


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. A colon or the time of day will reappear on the screen.

Model NN-SN736


Model NN-SN733


Model NN-SN744S


Models NN-SN75LB/LW, NN-SN76LS


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SN773


Model NN-SN778


Model NN-SN936B/W, NN-SN945S, NN-SN946B/W, NN-SN952S, NN-SN955S


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SN96JS, NN-SN962S, NN-SN965S, NN-SN966, NN-SN97JS, NN-SN975S


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SN968


  1. To Lock - Press the [Start] button three times. A indication arrow arrow pointing to key pinting at the key symbol will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. A colon or the time of day will reappear on the screen.

Note:

  1. You can set the Child Lock feature when the display shows a colon or time of day.

Model NN-ST651


Model NN-ST66KW/KB, NN-ST67KS, NN-ST69KS


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-ST661, NN-ST663, NN-ST676, NN-ST681, NN-ST696


Model NN-ST74LS, NN-ST75LW/LB, NN-ST762S, NN-ST765S, NN-ST77LS


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-ST775

Models NN-ST962S, NN-ST966B/W, NN-ST96JS, NN-ST975S, NN-ST98JS, NN-ST99JS


  1. To Lock - Press the [Start] button three times. A “LOCK” Lock Symbol icon will appear on the screen.
  2. To Unlock - Press [Stop] button three times. A colon or the time of day will reappear on the screen.

Model NN-SU158S


Model NN-SU63MS AWH Manufactured after March 2024



This video demonstrates model NN-SB65NS but operations may apply to other models


Model NN-SU63MS, NN-SU64LB/LW, NN-SU65LS/LB/LW, NN-SU65LS


  1. To Lock - Press the [Start] button three times. A mark will appear on the screen above the “Lock” Lock Symbol indicator.
  2. To Unlock - Press [Stop/Reset] button three times. Time of day will reappear on the screen.

Model NN-SU65QB, NN-SU65QS, NN-SU65QW


This video demonstrates model NN-SB65NS but operations may apply to other models


Your microwave oven is equipped with an electronic child-safety function, to be more precise: the door lock function, which enables the oven door to be “locked” so that children or anyone unfamiliar with it cannot operate it accidentally. Distinguishing from that of child safety lock, the door lock does not lock access to the microwave function, it simply prevents burning by opening the door accidentally. Specifically, the electronic child-safety lock is activated or deactivated through specific buttons on the control panel.

To unlock the oven during or after cooking Child-safety Electronic Door Lock:

  1. When plugged in, the door lock is automatically activated.
    As soon as cooking finishes.
    blank display line at bottom the display shows “dash symbol to indicate that the oven is locked.
  2. Press the "Door Open" pad once, the oven door is now unlocked.
  3. Open the door and take out the food with special care.

Notes

  • During the cooking process, or 30 min after cooking, if the "Door Open" button is pressed, but the door is not actually opened, the door will lock again after 10 seconds.
  • During the cooking process, if you try to open the door, the cooking will pause and the oven light will come on.

Leave the door lock feature disengaged if you don’t need it temporarily, or follow the instruction to reactivate.

To deactivate:


  1. Press “Defrost”, “Timer”, “Popcorn” in turn, a long beep will be heard, the window shows “On” for roughly 2 seconds, or replug the oven, both ways can reactivate the function. Display indicates that the oven is locked.

To Reactivate:


  1. Press “Defrost”, “Timer”, “Popcorn” in turn, a long beep will be heard, the window shows “On” for roughly 2 seconds, or replug the oven, both ways can reactivate the function.

Notes:


  • The operation must be performed with the microwave oven in stand-by mode.
  • If it is in the middle of setting a cook method, or in the cooking process, you need to press "Stop/Reset" to clear the function and return the oven to stand-by mode first.
  1. When microwave is not in use and time of day appears in the display, press [Start] three times.
    null
  2. press [Stop/Reset] three times; the display will return to the time of the day and Child Lock will be cancelled.
    null

Notes

  • This feature prevents the electronic operation of the oven until cancelled. It does not lock the door.
  • To set or cancel child safety lock, Start or Stop/Reset pad must be pressed 3 times within 10 seconds.
  • You can set Child Lock feature when the display shows a colon or time of day.

Model NN-SU656


Model NN-SU66LS AWH Manufactured after March 2024


This video demonstrates model NN-SB65NS but operations may apply to other models

How to open/unlock door after cooking

  1. With the door closed, press the [Door Open] button.
  2. Press Door release button.
    door open button

NOTE:
The locked door will disengage when unit is unplugged.
*The "Door Open" button will vary by model.


Model NN-SU66LS


Model NN-SU696


Model NN-SV79MS AWH Manufactured after March 2024


How to deactivate safety lock

  1. Press [Turbo Defrost].
  2. Then press [Timer/Clock (Door Open) ].
  3. Last press [Popcorn].

To re-activate the safety door lock, repeat the above steps.


How to Unlock door after Cooking

  1. With the door closed, press [Timer/Clock (Door Open)].
    null
  2. Then press the door release button.

NOTE:
The locked door will disengage when unit is unplugged.


Model NN-SV79MS


  1. To Lock - When "0" appears in the display, Press [Stop/Reset] button three times. Lock Symbol will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. The display will return to the colon (:) or time of day and Child Safety lock will be cancelled.

Note:


  1. This feature prevents the electronic operation of the oven until cancelled. It does not lock the door.
  2. To set or cancel Child Safety Lock, Stop/Reset button must be pressed 3 times within 10 seconds.
  3. You can set Child SafetyLock feature when the display shows a colon or time of day.

Model NN-T735, NN-T745, NN-T755, NN-T775


NN-T935, NN-T945, NN-T955, NN-T965, NN-T975


Model NU-HX100S


  1. To Lock - When "0" appears in the display, press the [Start/Select] dial three times. “LOCK” will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. "0" appears in the display.

Model NU-SC180


  1. To Lock - When "0" appears in the display, Press [Stop/Reset] button three times. Lock Symbol will appear on the screen.
  2. To Unlock - Press [Stop/Reset] button three times. "0" appears in the display.

Note:


To set or cancel child safety lock should be pressed within 10 seconds.

Corporate
Business Products
Industrial Products
Sanyo
Panasonic International Support
Important Notices
FZ-G1 Battery Recall
RP-HD605N
Shop Panasonic
Shop Panasonic USA
Shop MultiShape Products
Shop Technics
Shop LUMIX
©2024
About Panasonic
Do Not Sell My Data
Accessibility Statement
Privacy Policy
Terms of use
